Newel Pier Parts

Standard Newel Piers project above the balustrade hand rail and are typically 12" square. Choose 360º, 270º, 180º, or 90º Newel Piers, as required by your design. Optional Pass Through Newel Piers are shorter than the standard piers (the same height as the baluster), but still 12" square. The hand rail aligns with the top of the newel cap. In Line Newel Piers are the same height as the balusters and the same zz width as the hand and base rails. The hand and base rails continue above and below the In Line Newel instead of using a separate cap and base.

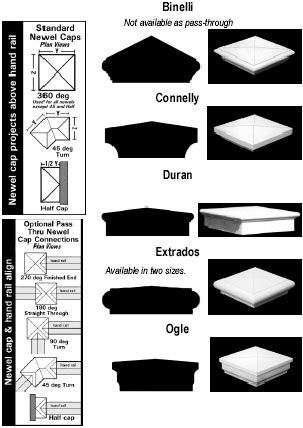

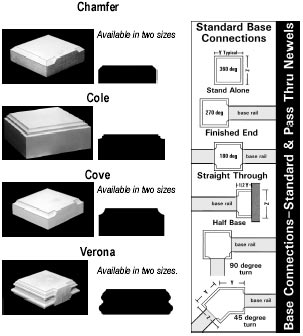

Newel Cap Profiles Newel Base Profiles
  Cap photos show 360º parts.   Base photos show 270º Finished Ends.

Newel Cap Profiles

Newel Base Profiles

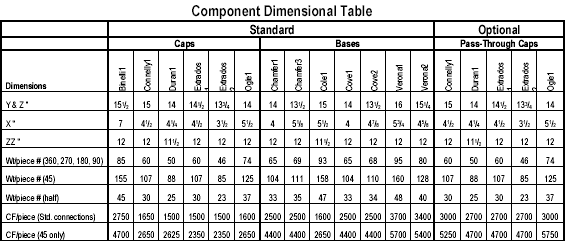

Component Dimensional Table
